[리뷰] ECS N9600GT-512MX-P 그래픽카드
대호이
2008. 2. 21. 15:19
원본 : OCWorkBench
Link : http://www.ocworkbench.com/2008/ecs/N9600GT-512MX-P-with-Accelero-S2/g1.htm

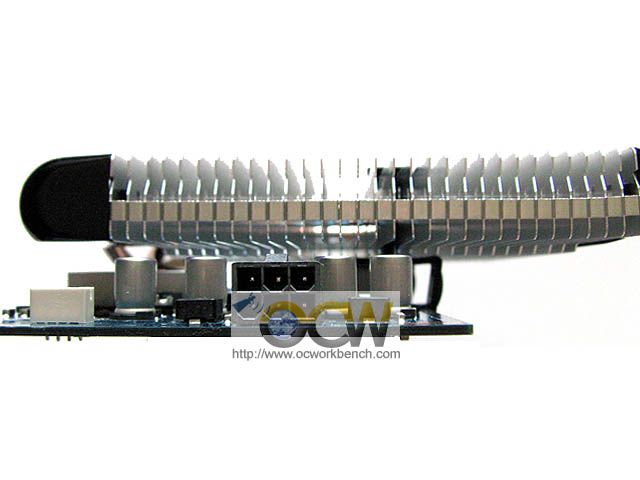

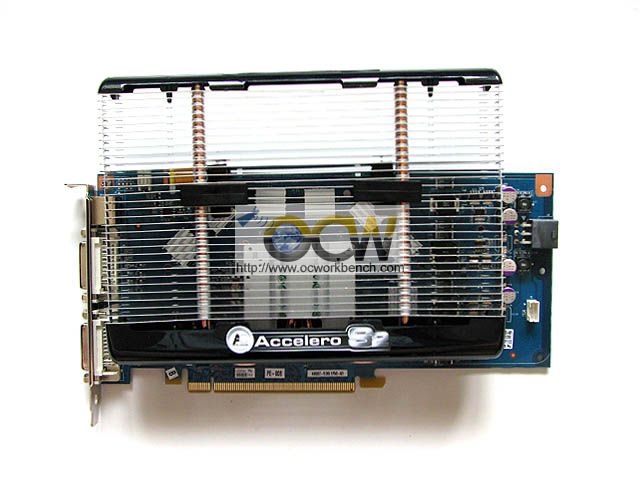

9600GT 출시기사가 쏟아지고 있는 가운데.. Accelero S2를 패시브 쿨링으로(쿨러가 없습니다.. -_-;)
사용한 ECS 9600GT 리뷰가 벌써 나왔네요.. 내용은 이미지 위주라 알아보기 쉬우실 것 같습니다..^^

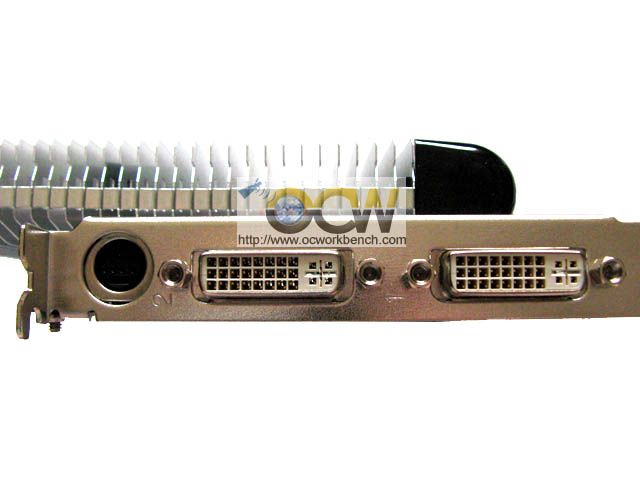

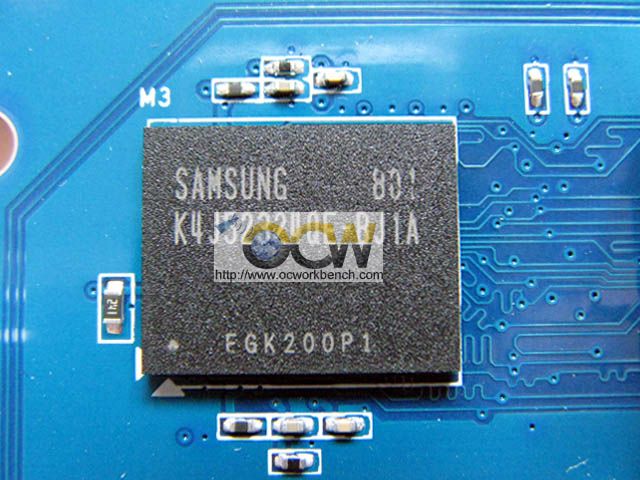

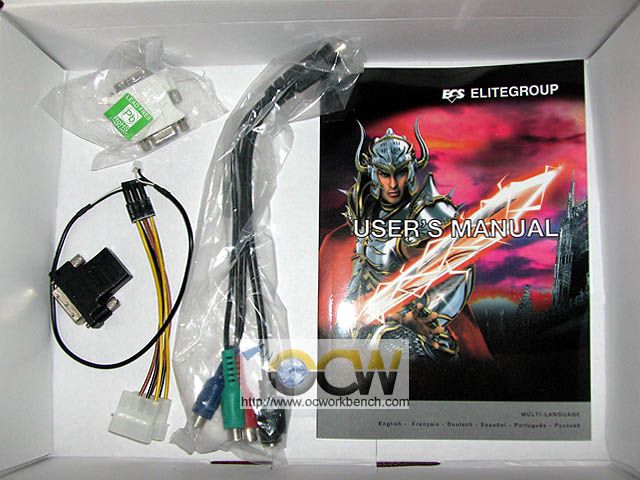

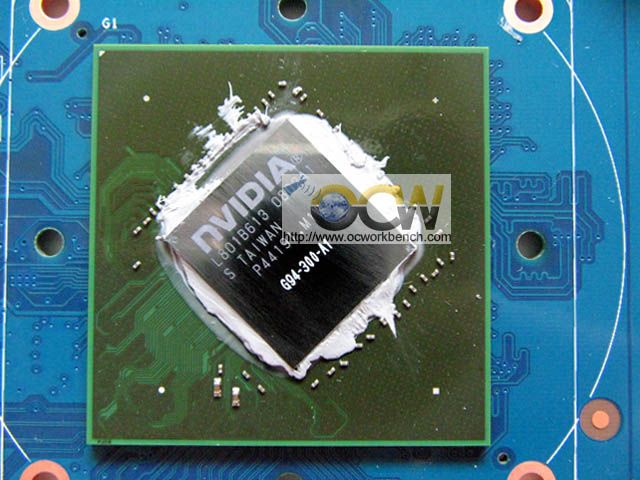

외형

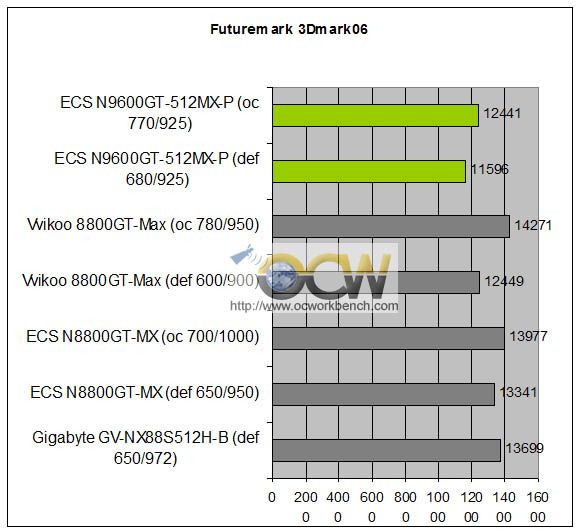

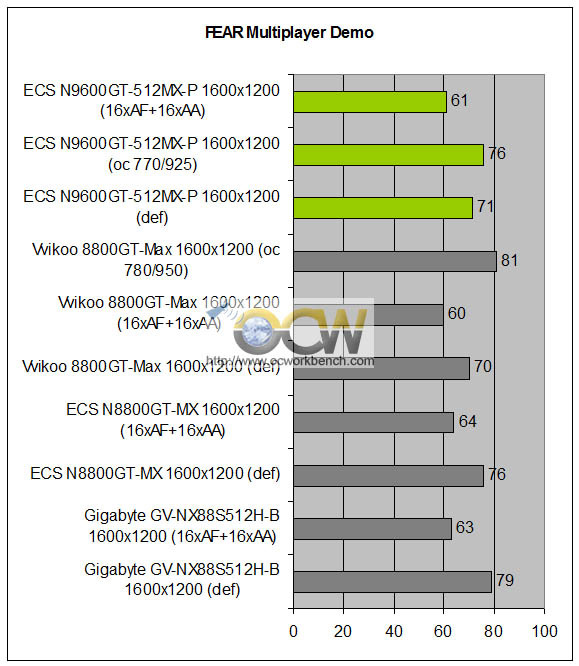

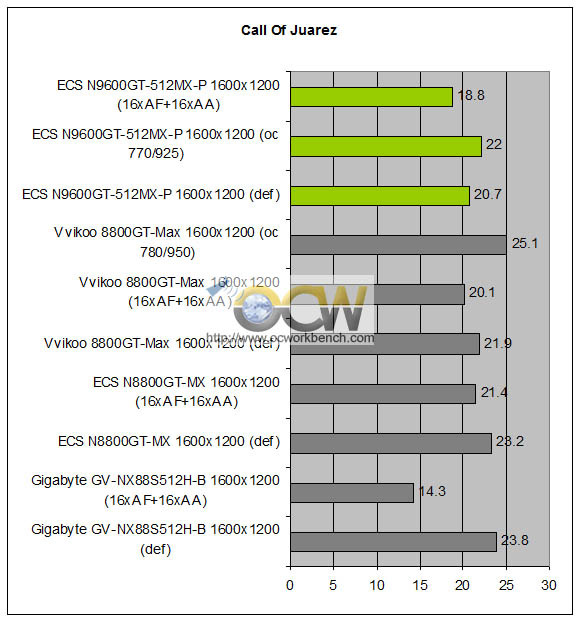

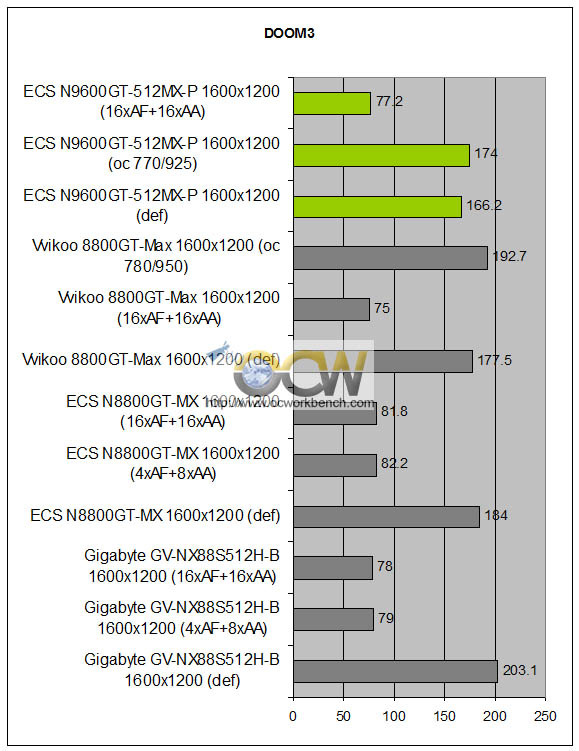

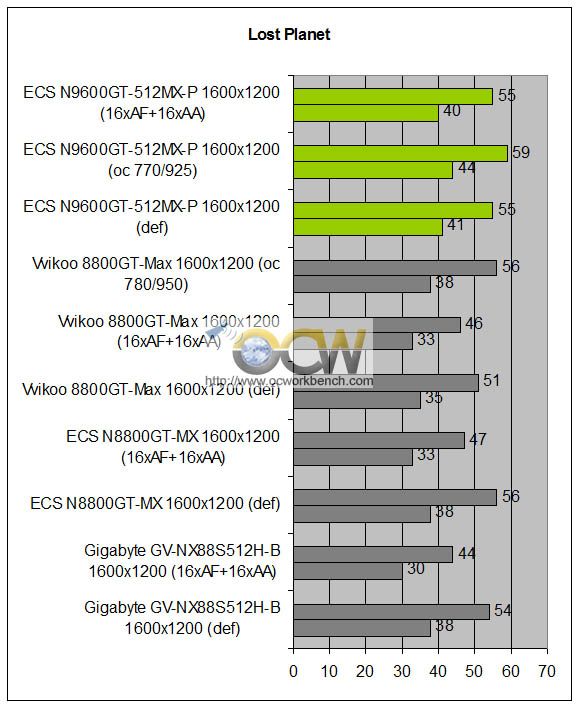

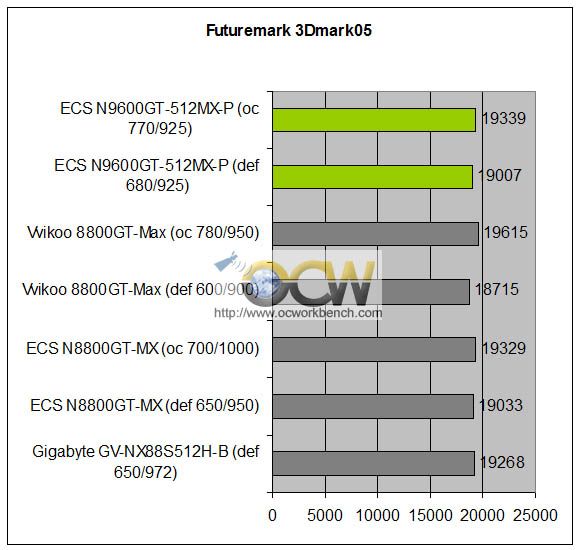

Benchmarks
| Test | NV 9600GT (G94) | NV 8800GT/GTS (G92) | ATi Radeon HD 3870 | NV 8500GT | ATi Radeon HD 2400XT | ATi Radeon HD 2600XT | ATi Radeon HD 2900XT | NV 8800GTX |
| Colour Bar Test | 5 | 5 | 10 | 10 | 10 | 10 | 10 | 10 |
| Jaggies Pattern 1 | 5 | 5 | 10 | 3 | 5 | 10 | 5 | 5 |
| Jaggies Pattern 2 | 3 | 5 | 3 | 0 | 3 | 3 | 3 | 3 |
| Flag | 10 | 10 | 10 | 5 | 10 | 10 | 10 | 10 |
| Picture Details | 0 | 0 | 0 | 0 | 0 | 5 | 5 | 10 |
| Noise Reduction | 0 | 0 | 10 | 5 | 5 | 10 | 10 | 5 |
| Motion Adaptive Noise Reduction | 0 | 0 | 0 | 5 | 5 | 5 | 10 | 5 |
| 3:2 Detection | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 10 |
| Film Cadence | ||||||||
| 2-2 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 |
| 2-2-2-4 DVCAM | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 |
| 2-3-3-2 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 |
| 3-2-3-2-2 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 |
| 5-5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 |
| 6-4 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 |
| 8-7 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 |
| 3-2 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 |
| Horizontal Scroll | 10 | 10 | 0 | 5 | 10 | 10 | 10 | 10 |
| Vertical Scroll | 10 | 10 | 0 | 5 | 10 | 10 | 10 | 10 |
| Total | 88 out of 130 points | 90 out of 130 points | 88 out of 130 points | 83 out of 130 points | 103 out of 130 points | 118 out of 130 points | 118 out of 130 points | 118 out of 130 points |

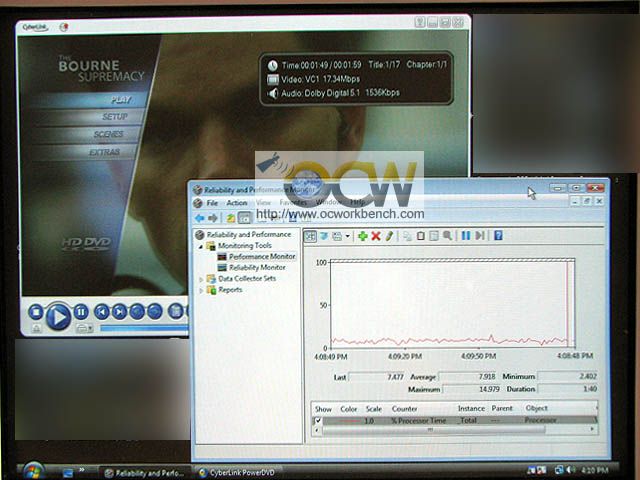

HQV HD Test
We acquired the HD HQV and tested it. Here is a breakdown of the results.
With a score of 82 out of 100, this card has outperform the previous generation cards in terms of HD display. The card had exceptional clarity when playing back HD HQV test in areas of video resolution, jaggies, film resolution test and stadium test. The only area that did not perform that well is the HD noise reduction test, giving it a score of 7.
NVIDIA 9600GT (G94)
| HD Noise Reduction |
7/25 |
| Video Resolution Lost Test | 20/20 |
| Jaggies | 20/20 |
| Film Resolution Test | 25/25 |
| Film Resolution Test - Stadium | 10/10 |
| Total | 82/100 |
NVIDIA 8800GTS (G92)
| HD Noise Reduction |
15/25 |
| Video Resolution Lost Test | 0/20 |
| Jaggies | 20/20 |
| Film Resolution Test | 0/25 |
| Film Resolution Test - Stadium | 10/10 |
| Total | 45/100 |
ATI Radeon HD 3870
| HD Noise Reduction |
15/25 |
| Video Resolution Lost Test | 20/20 |
| Jaggies | 10/20 |
| Film Resolution Test | 0/25 |
| Film Resolution Test - Stadium | 10/10 |
| Total | 55/100 |
NVIDIA 8500GT
| HD Noise Reduction |
7/25 |
| Video Resolution Lost Test | 20/20 |
| Jaggies | 10/20 |
| Film Resolution Test | 0/25 |
| Film Resolution Test - Stadium | 10/10 |
| Total | 47/100 |
HD 2400XT
| HD Noise Reduction | 7/25 |
| Video Resolution Lost Test | 20/20 |
| Jaggies | 10/20 |
| Film Resolution Test | 0/25 |
| Film Resolution Test - Stadium | 10/10 |
| Total | 47/100 |
Ratings Here are my ratings out of 10 stars.
| Category | Score |
| Performance | 10 / 10 |
| Features | 10 / 10 |
| Ease Of Installation | 10 / 10 |
| Documentation | 8 / 10 |
| Packaging & Bundle | 8 / 10 |
| Cost Performance | 7 / 10 |
| Overall Rating : | 8.8 / 10 |
